Automatic transmission

The concept of an automatic transmission is new in India. An automatic transmission is a motor vehicle transmission that can automatically change gear ratios as the vehicle moves, freeing the driver from having to shift gears.  In this transmission system the gears are never physically moved and are always engaged to the same gears. Automatic transmissions contain mechanical systems, hydraulic systems, electrical systems and computer controls, all working together in perfect harmony manually.

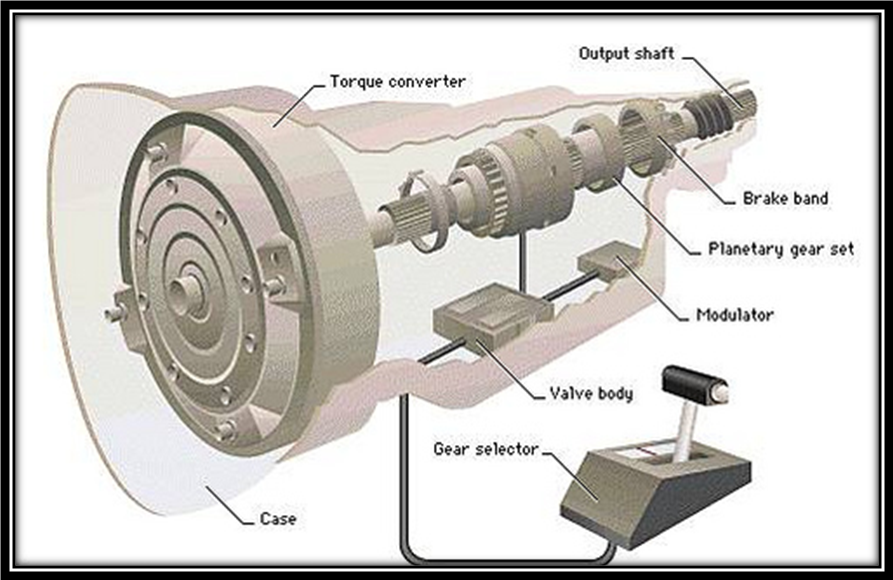

Main Components of an Automatic Transmission-

1.      Planetary Gear Sets

2.      Clutches and Bands

3.      Torque Converter

4.      Valve Body

Synchronised transmission

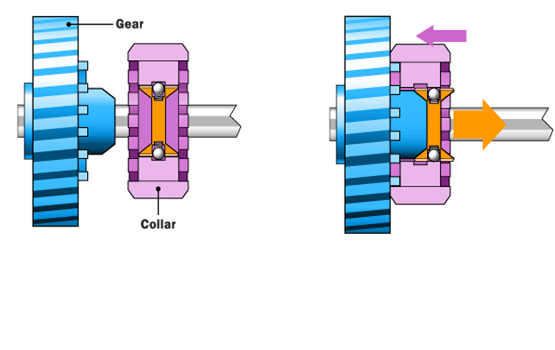

Manual transmissions in modern passenger cars use synchronizers to eliminate the need for double-clutching. A synchro's purpose is to allow the collar and the gear to make frictional contact before the dog teeth make contact. This lets the collar and the gear synchronize their speeds before the teeth need to engage as shown in figures.

Synchronized gearbox consists of cone shaped brass clutch engaged to the gear. The cone on the blue gear fits into the cone-shaped area in the collar, and friction between the cone and the collar synchronize the collar and the gear. The outer portion of the collar then slides so that the dog teeth can engage the gear.

Double clutching

Double-clutching was common in older cars and is still common in some modern race cars. In double-clutching, you first push the clutch pedal in once to disengage the engine from the transmission. This takes the pressure off the dog teeth so you can move the collar into neutral. Then you release the clutch pedal and rev the engine to the "right speed." The right speed is the rpm value at which the engine should be running in the next gear. The idea is to get the blue gear of the next gear and the collar rotating at the same speed so that the dog teeth can engage. Then you push the clutch pedal in again and lock the collar into the new gear. At every gear change you have to press and release the clutch twice, hence the name "double-clutching."
